Hot sell bottle blow molding machine AM35

Name: Hot sell bottle blow molding machine AM35
Brand: Aman
Price: 1 USD

Place of Origin : China

Brand Name : Aman

Model Number : AM35

Certification : CE

Contact Now

Plastic machinery AMAN Injection blow molding machine

Main Technological parameters

Name	Data	Name	Data
screw stem diameter	40mm	Stripping distance	120mm
Length/diameter ratio of screw stem (L/D)	20	Mould size L ×W	400x200mm
Max. theoretical injection capacity	158cm3	Min. mould thickness	180mm
Max. theoretical injection speed ratio	60cm3/sec.	Hydraulic system pressure	14MPa
Max. distance of screw	165mm	Lifting height of rotary table	60mm
Plasticizing capacity	12g/s	Cooling consuming volume	3M3/h
Injection clamping molding	300kn	Product scale	0.005-0.6L
Opening distance of injection mould	120mm	Product height	≤175mm
Blow molding	30kn	Product diameter	≤100mm

Hot sell bottle blow molding machine AM35

1.Usage:

The machine adopts injection blow molding technology and once-molding technology. It is a bottle blower of making hollow bottles. It can produce high grade bottle whose bottleneck has high precision.

2.Application:

It is widely used manufacturing package bottles in pharmacy,food,cosmetics,chemical and other trades.

Hot sell bottle blow molding machine AM35

3.Composition:

The machine is composed of injection section, injection-blowing molding section, rotary lifting section, stripping section, hydraulic control section, electric control section, blow control section and others. An air compressor and two mould temperature controllers must be bought by consumer or are equipped according to the contract.

Hot sell bottle blow molding machine AM35

4.Packing : Export packing

5.Characteristics:

(1)It adopts a thermal flow system and high-pressure injection molding

(2)Adopts single-screw stem horizontal injection method

(3Adjust rings can be fixed in mechanical, hydraulic, aircontrol, electric and others to ensure the technological demands of different products.

(4)Strong applicability to raw materials

(5)Low-mould protection, proportion pressure, proportion flowing adjustment and other functions

Hot sell bottle blow molding machine AM35

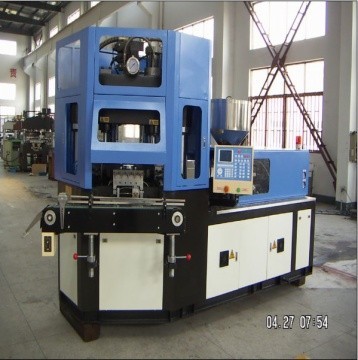

Hot sell bottle blow molding machine AM35 Images
